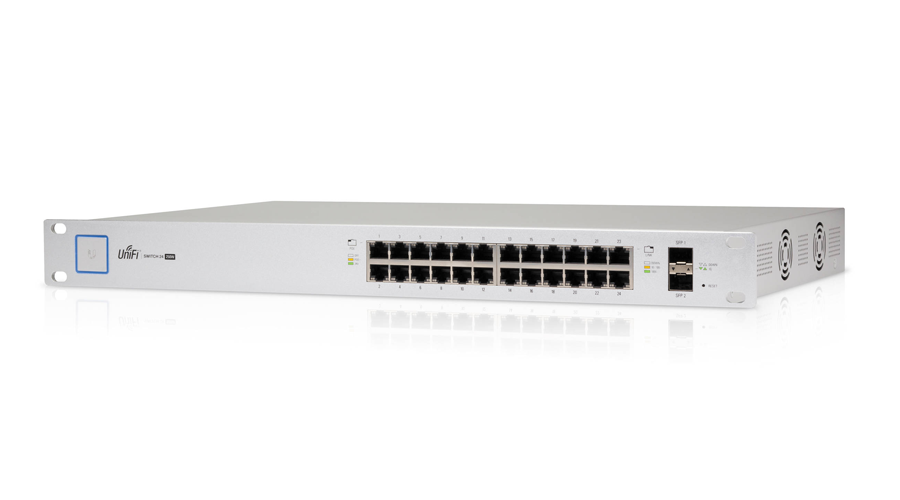

Ubiquiti UniFi Switch 24 – 500W
$475.00
Ubiquiti UniFi Switch 24 – 500W
- Ports – 24 x 10/100/1000 Mbps RJ45 Ethernet Ports, 2 x SFP Ethernet Ports
- Management Interface – 1 x Serial Console Port
- PoE – POE IEEE 802.3at/af and 24V Passive PoE
- Switching Capacity – 52 Gbps
- Forwarding Rate – 38.69 Mpps
- Warranty – 1 Year
Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
Specifications
- Networking Interfaces
- (24) 10/100/1000 Mbps RJ45 Ethernet Ports
- (2) 1 Gbps SFP Ethernet Ports
- Management Interface
- (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
- Total Non-Blocking Throughput
- 26 Gbps
- Switching Capacity
- 52 Gbps
- Forwarding Rate
- 38.69 Mpps
- MAC Address Table
- 16384
- Maximum Aggregations
- 6
- Monitoring Sessions
- 1
- Maximum VLANs
- 255
- Power Method
- 100-240VAC/50-60 Hz, Universal Input
- Power Supply
- AC/DC, Internal, 500W DC
PoE Per Port
- PoE Interfaces
- POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- 24VDC Passive PoE (Pins 4, 5+; 7, 😎
- Max. PoE+ Wattage per Port by PSE
- 34.2W
- Voltage Range 802.3at Mode
- 50–57V
- Max. Passive PoE Wattage per Port
- 17W
- 24V Passive PoE Voltage Range
- 20-27V
